Howto OA-PP-121: Complex preprocessing with parallel tasks
Executable code
## -------------------------------------------------------------------------------------------------
## -- Project : MLPro - The integrative middleware framework for standardized machine learning
## -- Package : mlpro.oa.examples
## -- Module : howto_oa_streams_pp_121_complex_preprocessing.py
## -------------------------------------------------------------------------------------------------
## -- History :
## -- yyyy-mm-dd Ver. Auth. Description
## -- 2023-07-27 1.0.0 LSB Creation/Release
## -- 2024-05-02 1.1.0 DA Review/minor adjustments
## -- 2024-05-12 1.2.0 DA Event-based adaption Window->BoundaryDetector added
## -- 2024-07-19 1.2.1 SY Refactoring due to method Deriver._prepare_derivation()
## -- 2024-12-09 1.2.2 DA Bugfix
## -------------------------------------------------------------------------------------------------
"""
Ver. 1.2.2 (2024-12-09)
This howto shows an example of complex preprocessing with parallel tasks. It addresses several
problems like feature rearanging, numerical feature derivation, data windowing, and self-adapting
realtime normalization.
You will learn:
1) How to set up an online adaptive stream workflow based on stream tasks.
2) How to set up a stream scenario based on a stream and a processing stream workflow.
3) How to combine various preprocessing tasks like a rearranger, a deriver, a sliding window, etc.
4) How to normalize stream data in realtime
5) How to add parallel running tasks
6) How to use the event-based adaptation in stream workflows
7) How a sliding window affects the adaptation of successor tasks in the workflow
8) How to run a stream scenario dark or with visualization.
"""
from mlpro.bf.streams.streams import *
from mlpro.bf.streams.tasks import *
from mlpro.oa.streams import *
from mlpro.oa.streams.tasks import BoundaryDetector, NormalizerMinMax, NormalizerZTransform
## -------------------------------------------------------------------------------------------------
## -------------------------------------------------------------------------------------------------
class MyScenario (OAStreamScenario):
"""
Example of a custom stream scenario including a stream and a stream workflow. See class
mlpro.oa.streams.OAScenario for further details and explanations.
"""
C_NAME = 'Demo Complex Preprocessing'
## -------------------------------------------------------------------------------------------------
def _setup(self, p_mode, p_ada: bool, p_visualize: bool, p_logging):
# 1 Import a native stream from MLPro
provider_mlpro = StreamProviderMLPro(p_logging=p_logging)
stream = provider_mlpro.get_stream('DoubleSpiral2D', p_mode=p_mode, p_logging=p_logging)
# 2 Set up a stream workflow
workflow = OAStreamWorkflow( p_name = 'Input Signal - "DoubleSpiral2D"',
p_range_max = Task.C_RANGE_NONE,
p_ada = p_ada,
p_visualize = p_visualize,
p_logging = logging )
# 2.1 Set up and add a rearranger task to reduce the feature and label space
features = stream.get_feature_space().get_dims()
features_new = [ ( 'F', features[0:1] ) ]
task1_rearranger = Rearranger( p_name = '1 - Rearranger',
p_range_max = Task.C_RANGE_THREAD,
p_visualize = p_visualize,
p_logging = p_logging,
p_features_new = features_new )
workflow.add_task( p_task=task1_rearranger )
# 2.2 Set up and add a deriver task to extend the feature and label space (1st derivative)
derived_feature = features[0]
task2_deriver1 = Deriver( p_name = '2 - Deriver #1',
p_range_max = Task.C_RANGE_THREAD,
p_visualize = p_visualize,
p_logging = p_logging,
p_features = features,
p_label = None,
p_derived_feature = derived_feature,
p_derived_label = None,
p_order_derivative = 1 )
workflow.add_task( p_task = task2_deriver1,
p_pred_tasks = [task1_rearranger] )
# 2.3 Set up and add a deriver task to extend the feature and label space (2nd derivative)
derived_feature = features[0]
task3_deriver2 = Deriver( p_name = '3 - Deriver #2',
p_range_max = Task.C_RANGE_THREAD,
p_visualize = p_visualize,
p_logging = p_logging,
p_features = features,
p_label = None,
p_derived_feature = derived_feature,
p_derived_label = None,
p_order_derivative = 2 )
workflow.add_task( p_task = task3_deriver2,
p_pred_tasks = [task1_rearranger, task2_deriver1] )
# 2.4 Set up and add a Sliding Window
task4_window = RingBuffer( p_buffer_size = 100,
p_name = '4 - Ring Buffer',
p_delay = True,
p_visualize = p_visualize,
p_enable_statistics = True,
p_logging = p_logging )
workflow.add_task( p_task = task4_window,
p_pred_tasks = [task3_deriver2] )
# 2.5 Setup and add a Boundary Detector
task5_bd = BoundaryDetector( p_name = '5 - Boundary Detector',
p_ada = p_ada,
p_visualize = p_visualize,
p_logging = p_logging )
workflow.add_task( p_task = task5_bd,
p_pred_tasks = [task4_window] )
# 2.5.1 Here the event-based adaptation mechanism of the Boundary Betector is connected to the predecessor Windoow task
task4_window.register_event_handler( p_event_id = RingBuffer.C_EVENT_DATA_REMOVED,
p_event_handler = task5_bd.adapt_on_event )
# 2.6 Setup Z Transform-Normalizer in Parallel
task6_norm_ztrans = NormalizerZTransform( p_name = '6 - Normalizer Z-Trans',
p_ada = p_ada,
p_duplicate_data = True, # Important!! Avoids normalization of original instances
p_visualize = p_visualize,
p_logging = p_logging )
workflow.add_task( p_task = task6_norm_ztrans,
p_pred_tasks = [task4_window] )
# 2.7 Setup MinMax-Normalizer
task7_norm_minmax = NormalizerMinMax( p_name = '7 - Normalizer MinMax',
p_ada = p_ada,
p_duplicate_data = True, # Important!! Avoids normalization of original instances
p_visualize = p_visualize,
p_logging = p_logging )
workflow.add_task( p_task = task7_norm_minmax,
p_pred_tasks = [task5_bd] )
# 2.7.1 Here the event-based adaptation mechanism of the MinMax-Normalizer is connected to the predecessor Boundary Detector task
task5_bd.register_event_handler( p_event_id = BoundaryDetector.C_EVENT_ADAPTED,
p_event_handler = task7_norm_minmax.adapt_on_event )
# 3 Return stream and workflow
return stream, workflow
# 1 Preparation of demo/unit test mode
if __name__ == '__main__':
# 1.1 Parameters for demo mode
cycle_limit = 721
logging = Log.C_LOG_ALL
visualize = True
step_rate = 3
else:
# 1.2 Parameters for internal unit test
cycle_limit = 102
logging = Log.C_LOG_NOTHING
visualize = False
step_rate = 5
# 2 Instantiate the stream scenario
myscenario = MyScenario( p_mode=Mode.C_MODE_SIM,
p_cycle_limit=cycle_limit,
p_visualize=visualize,
p_logging=logging )
# 3 Reset and run own stream scenario
myscenario.reset()
if __name__ == '__main__':
myscenario.init_plot( p_plot_settings=PlotSettings( p_view = PlotSettings.C_VIEW_ND,
p_view_autoselect = False,
p_step_rate = step_rate ) )
input('Press ENTER to start stream processing...')
myscenario.run()
if __name__ == '__main__':
input('Press ENTER to exit...')
Results

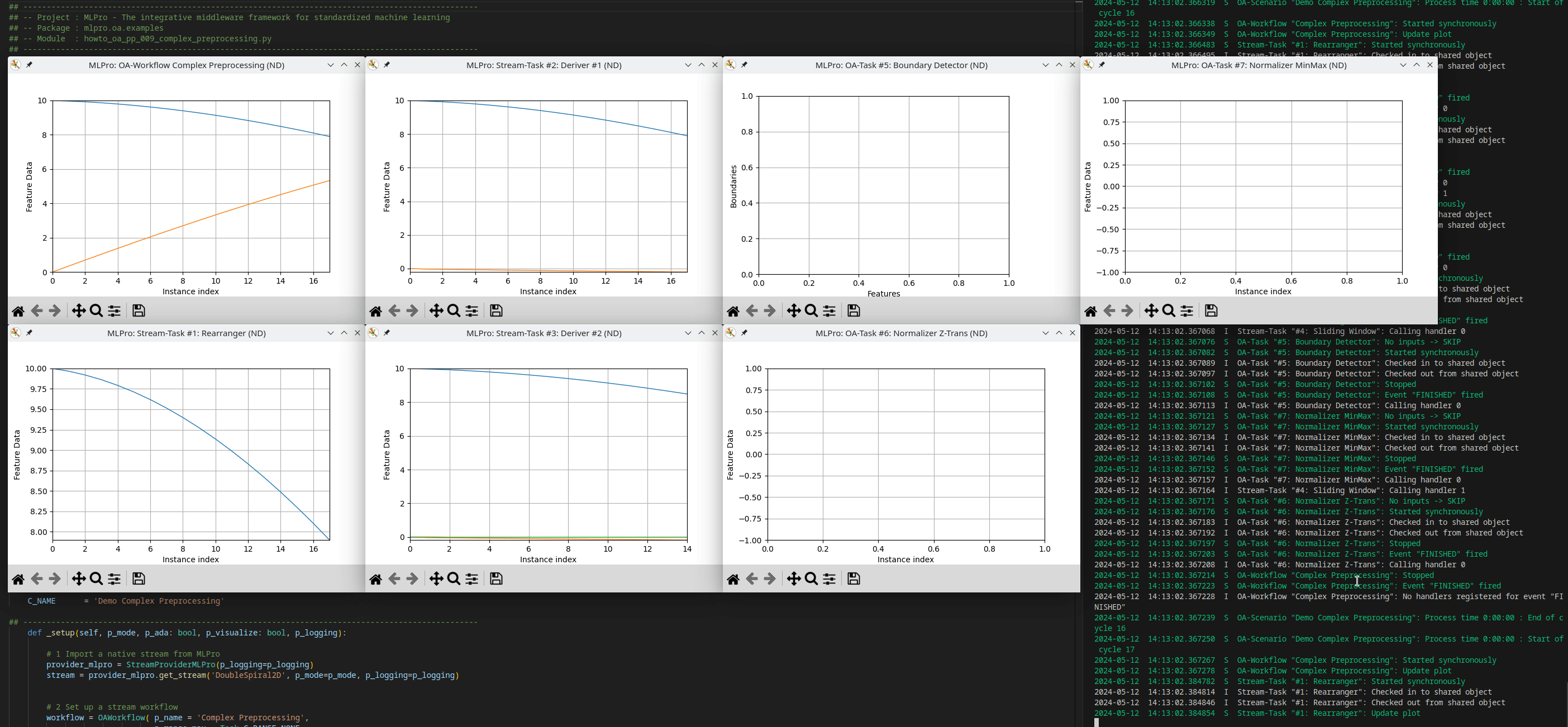

After starting the Howto, the Workflow and Tasks windows appear. These can now be arranged on the screen before the actual processing is started with a keystroke…
